Wiring and Electrical Tech
Fuse Diagrams (Click Images to Expand)
79-93 Engine Bay Fuse Diagram

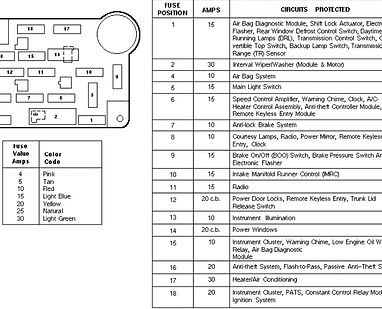

94-04 Interior Fuse Diagram

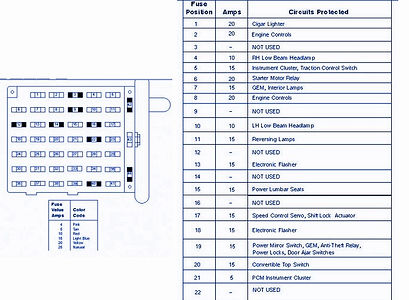

96-04 Fuse Panel Diagram
SN95 4.6 Tech

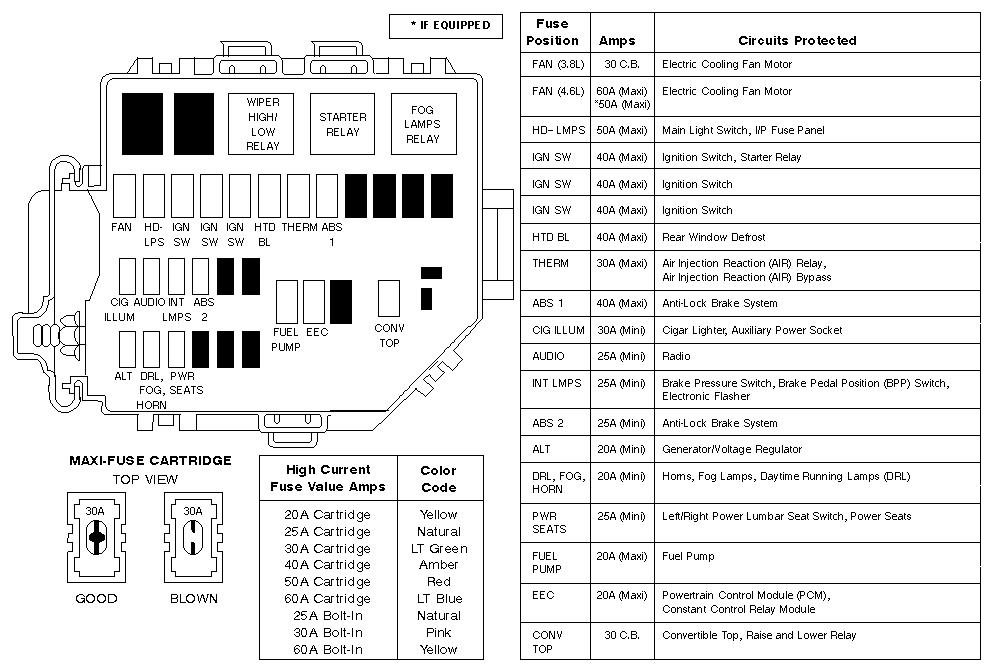

99-04 Fuse Diagram
96-98 Engine Compartment Fuse Diagram

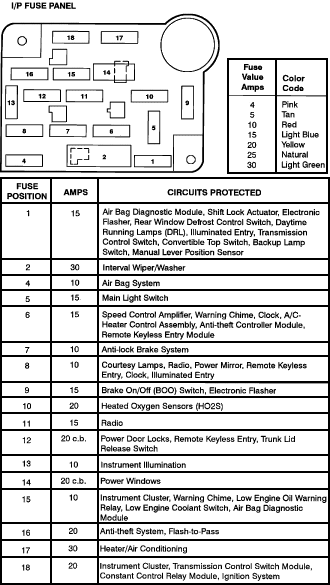

79-93 Interior Fuse Diagram

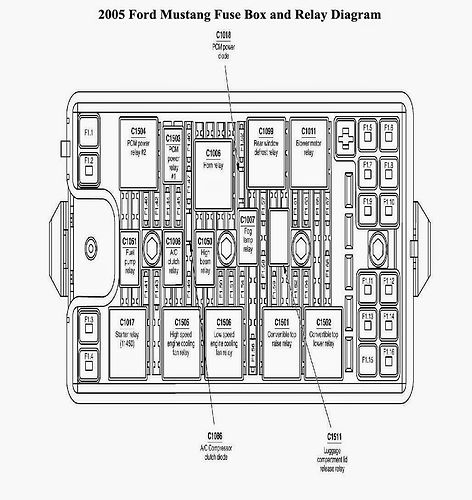

2005 Fuse and Relay Diagram

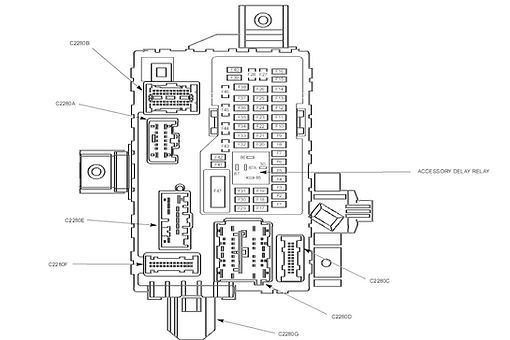

2011+ Interior Fuse Diagram
